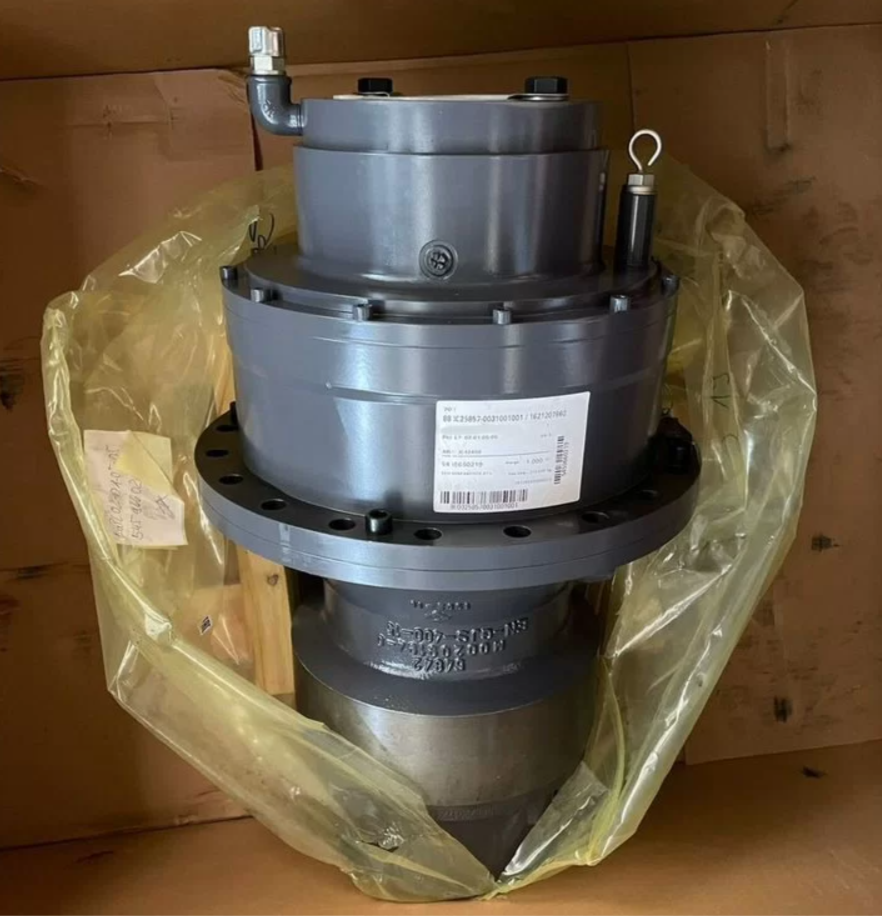

РЕДУКТОР ПОВОРОТА В СБОРЕ С ГИДРОМОТОРОМ | 730250000395 730250000117

Поворотный механизм гидравлический узел мотор насос гидронасос башни кабины разворота  swing gearbox для гусеничного экскаватора  САНВАРД

730250900462 1 TIME DELAY VALVE .延迟阀1
033 751106000058 1 SCREW HEX S.H.C .内六角螺栓3
051 730250900463 1 RELIEF VALVE .溢流阀2ST
051-1 730603000261 1 O RING ..O形密封圈2
052 730250900464 1 ANTI-REACTION VALVE ASSY. .防逆转阀组件1
100 730250900465 1 CASING ..壳体1
151 730250900474 1 PLUG ..油塞2
161 730603000233 1 O RING ..O形密封圈2
162 730603000260 1 O RING ..O形密封圈2
163 730603000229 1 O RING ..O形密封圈2
400 730250900480 1 ANTI-REACTION VALVE ..防逆转阀2
400-2 730654000107 1 BACK-UP RING ...挡圈2
400-1 730603000259 1 O RING ...O形密封圈2
101 730250900466 1 DRIVE SHAFT .驱动轴1
111 730250901187 1 CYLINDER .缸体1
114 730250901188 1 PLATE SPRING .板弹簧1
730250901189 1 PISTON ASSY. .柱塞组件1
121 730250901190 1 PISTON ..柱塞9 B
122 730250901191 1 SHOE ..滑靴9 B
123 730250901192 1 SET PLATE .压板1
124 730250901193 1 PLATE SHOE .滑靴盘1
131 730250901194 1 VALVE PLATE .配油盘1
171 1 SCREW HEX S.H.C .内六角螺栓4
301 730250901195 1 CASING .壳体1
730250901196 1 VALVE CASING ASSY. .阀体组件1
303 730250901197 1 VALVE CASING ..阀体1 B
451 730250901198 1 PIN ..销2 B
351 730250901199 1 PLUNGER .阀套2
355 730250901200 1 SPRING .弹簧2
390 730250901201 1 NAME PLATE .铭牌1
391 751106000060 1 RIVET .铆钉2
401 751106000061 1 SCREW HEX S.H.C .内六角螺栓4
401 751106000061 1 SCREW HEX SHC 内六角螺栓4

730250000241 1 SWING MOTOR ◎回转马达1
443 730250901202 1 ROLLER BEARING .圆柱滚柱轴承1
444 730250901203 1 ROLLER BEARING .圆柱滚柱轴承l
469 730250901204 1 PLUG .油塞2
472 730603000842 1 O RING .O形密封圈1
488 730603000843 1 O RING .O形密封圈2
491 730250901205 1 OIL SEAL .油封1
702 730250901206 1 BRAKE PISTON .制动活塞1
706 730603000844 1 O RING .O形密封圈1
707 730603000845 1 O RING .O形密封圈1
712 730250901207 1 BRAKE SPRING .制动弹簧16
742 730250901208 1 FRICTION PLATE .摩擦片3
743 730250901209 1 SEPARATOR PLATE .分离片4
993 730250901210 1 PLUG .油塞1
994 730250901211 1 PLUG .油塞1
730250000241 1 SWING MOTOR ◎回转马达1
730250901161 1 REDUCTOR 减速机1
102 730250901162 1 CASE .箱体1
201 730250901163 1 GEAR WHEEL SHAFT .齿轮轴1
202 730250901164 1 GEAR WHEEL RING .齿轮圈1
203 730250901165 1 PLANET GEAR .行星齿轮4
204 730250901166 1 SUN GEAR .太阳齿轮1
730250901167 1 PRIMARY PLANET SUN GEAR UNIT .一级行星太阳轮组件1
210 730250901168 1 PLANET GEAR ..行星齿轮3
231 730250901169 1 PLANET CARRIER ..行星齿轮架1 B
283 730250901170 1 PON ROIL ..销轴3 B
285 730250901171 1 WASHER ..垫圈3 B
287 730250000341 1 WASHER ..垫圈1 B
403 730250901172 1 SHAFT BEARING ..滚针3
230 730250901173 1 PLANET CARRIER .行星齿轮架1
282 730250901174 1 PIN ROIL .销轴4
211 730250901175 1 SUN GEAR .太阳齿轮1
286 730250901176 1 WASHER .垫圈4
730250000357 1 OIL LEVEL CHECKER UNIT .油位检查器组件1
311 730250000340 1 OIL LEVEL CHECKER ..油位检查器1 B
312 730250900609 1 OIL LEVEL PIPE ..油位管1 B
730250000356 1 OILING UNIT .加油器组件1
313 730250900608 1 OILING PIPE ..加油管1 B
314 730250900607 1 OILING CAP ..加油帽1 B
390 730250901177 1 NAME PLATE .铭牌1
391 730250901178 1 PON ROIL .销轴2
401 730250901179 1 SHAFT BEARING .轴承1
402 730250901180 1 OUTER HEXAGON SCREW .轴承1
602 730250901181 1 INNER HEXAGON SCREW .内六角螺钉l4
801 730250901182 1 OIL SEAL .油封1
901 730250900602 1 FUEL DRAIN PLUG .放油塞1
910 730250901183 1 PIN .销4
912 730250901184 1 CLASP .卡环1
913 730250901185 1 CLASP .卡环1
915 730250901186 1 SHAFT BEARING SEAL .轴承密封1
925 730250900597 1 CORE VENT .排气塞1
926 730250900596 1 GREASE FITTING .黄油嘴1
