Описание

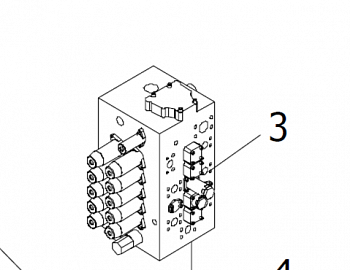

Распределительный клапан основной главный распределитель для гусеничного экскаватора САНВАРД
730302900108 1 VALVE BODY 阀体1
13 730302900117 1 VALVE BODY 阀体1
56 730603000273 1 O RING O形密封圈1
64 730603000274 1 O RING O形密封圈3
65 730603000275 1 O RING O形密封圈13
66 730603000806 1 O RING O形密封圈14
730302900157 1 PLUG ASSY. 堵头总成1
72.1 1 PLUG .堵头1 B
72.2 730603000780 1 O RING .O形密封圈1
77 7303029001601 1 END COVER BOLT 端盖螺钉8
96 730302900174 1 TIE ROB 连接轴4
97 730302900175 1 NUT 螺母4
730603000803 1 O RING O形密封圈10
28 730302900127 1 PLATE ASSY 板总成1
29 730302900128 1 PLATE ASSY 板总成1
41 730603000270 1 O RING O形密封圈6
75 730302900159 1 END COVER BOLT 端盖螺钉22
94 730302900172 1 END COVER BOLT 端盖螺钉2
730302900177 1 PLUG ASSY. 堵头总成3
110.1 1 PLUG .堵头3 B
110.2 730603000779 1 O RING .O形密封圈3
18 730302900122 1 SPOOL END COVER 阀芯端盖1
19 739850000003 1 SPOOL 阀芯1
20 739899000058 1 SPRING SEAT 弹簧座2
21 739899000056 1 SPRING 弹簧1
22 730302900123 1 SPOOL END 阀芯1
23 730603000375 1 O RING O形密封圈1
32 730302900129 1 POPPET 托架1
33 730302900130 1 SPRING 弹簧1
40 730302900136 1 ORIFFlCE PLUG 堵头1
1 RELIEF VALVE KIT ASSY. 溢流阀总成3 B
69.1 730302900154 1 RELIEF VALVE KIT .溢流阀3
69.2 730603000302 1 O RING .O形密封圈4
730302900156 1 PLUG ASSY. 堵头总成2
71.1 1 PLUG 堵头2 B
71.2 730603000039 1 O RING O形密封圈1
730302900157 1 PLUG ASSY. 堵头总成1
72.1 1 PLUG .堵头1 B
72.2 730603000780 1 O RING .O形密封圈1
730302900038 1 PLUG ASSY. 堵头总成3
73.1 1 PLUG .堵头3 B
73.2 730603000779 1 O RING .O形密封圈3
78 730302900161 1 END COVER BOLT 端盖螺钉4
82 730302900164 1 METAL PLUG 金属堵头5
730302900171 1 PLUG ASSY. 堵头总成1
93.1 1 PLUG .堵头
730302000082 1 MAIN VALVE ◎主阀1
34 730302900131 1 POPPET 托架1
35 730302900132 1 SPRING 弹簧1
36 730603000269 1 O RING O形密封圈3
37 730302900133 1 FLANGE 法兰1
46 730302900142 1 PLUG 堵头1
47 730603000805 1 O RING O形密封圈1
48 730302900141 1 SPRING 弹簧1
49 730302900143 1 POPPET 托架1
58 730302900147 1 SLEEVE 套筒1
59 730302900149 1 POPPET 托架1
60 730302900150 1 SPRING 弹簧1
61 730302900151 1 FLANGE 法兰1
730302900157 1 PLUG ASSY. 堵头总成5
72.1 1 PLUG .堵头5 B
72.2 730603000780 1 O RING .O形密封圈5
75 730302900159 1 END COVER BOLT 端盖螺钉8
730302900170 1 PLUG ASSY. 堵头总成1
92.1 1 PLUG .堵头1 B
92.2 730603000785 1 O RING .O形密封圈1
111 730302900178 1 PLUG 堵头1
112 730302900179 1 PISTON 活塞1
113 730302900180 1 PRIORITY VALVE BODY 优先阀体1
114 730302900181 1 PISTON 活塞1
115 730302900182 1 SPRING 弹簧1
116 730302900183 1 SLEEVE 套筒1
117 730302900184 1 POPPET ASSY. 托架总成1
118 730302900185 1 END COVER BOLT 端盖螺钉4
119 730603000278 1 O RING O形密封圈1
120 730654000108 1 RETAINING RING 挡圈1
121 730603000279 1 O RING O形密封圈1
730302000082 1 MAIN VALVE ◎主阀1
34 730302900131 1 POPPET 托架2
35 730302900132 1 SPRING 弹簧3
36 730603000269 1 O RING O形密封圈5
37 730302900133 1 FLANGE 法兰3
43 730302900138 1 FLANGE 法兰1
44 730302900139 1 POPPET 托架1
45 730302900140 1 SPRING 弹簧1
51 730302900144 1 POPPET 托架1
730302900156 1 PLUG ASSY. 堵头总成1
71.1 1 PLUG 堵头1 B
71.2 730603000039 1 O RING O形密封圈1
74 730302900158 1 END COVER BOLT 端盖螺钉4
75 730302900159 1 END COVER BOLT 端盖螺钉16
88 730302900168 1 END COVER 端盖2
89 730603000807 1 O RING O形密封圈2
730302900170 1 PLUG ASSY. 堵头总成1
92.1 1 PLUG .堵头1 B
92.2 730603000785 1 O RING .O形密封圈1
111 730302900178 1 PLUG 堵头1
112 730302900179 1 PISTON 活塞1
113 730302900180 1 PRIORITY VALVE BODY 优先阀体1
114 730302900181 1 PISTON 活塞1
115 730302900182 1 SPRING 弹簧1
116 730302900183 1 SLEEVE 套筒1
117 730302900184 1 POPPET ASSY. 托架总成1
118 730302900185 1 END COVER BOLT 端盖螺钉4
119 730603000278 1 O RING O形密封圈1
120 730654000108 1 RETAINING RING 挡圈1
121 730603000279 1 O RING O形密封圈1
25 730603000289 1 O RING O形密封圈1
32 730302900129 1 POPPET 托架1
33 730302900130 1 SPRING 弹簧1
34 730302900131 1 POPPET 托架1
35 730302900132 1 SPRING 弹簧1
36 730603000269 1 O RING O形密封圈1
38 730302900134 1 POPPET 托架1
39 730302900135 1 SPRING 弹簧1
41 730603000270 1 O RING O形密封圈7
42 730302900137 1 VALVE BODY ASSY. 阀体总成1
52 730302900145 1 FLANGE 法兰1
53 730302900146 1 BUSH 衬套1
54 730603000272 1 O RING O形密封圈1
55 730654000307 1 RETAINING RING 挡圈1
65 730603000275 1 O RING O形密封圈1
67 730302900152 1 ANTI-DRIFT VALVE ASSY. 抗漂移阀1
68 730302900153 1 RELIEF VALVE KIT 溢流阀1
1 RELIEF VALVE KIT ASSY. 溢流阀总成2 B
69.1 730302900154 1 RELIEF VALVE KIT .溢流阀2
69.2 730603000302 1 O RING .O形密封圈3
730302900155 1 RELIEF VALVE ASSY. 溢流阀总成1
70.1 1 RELIEF VALVE .溢流阀1 B
70.2 1 RETAINING RING .挡圈1 B
70.3 1 O RING .O形密封圈1 B
730302900157 1 PLUG ASSY. 堵头总成1
72.1 1 PLUG .堵头1 B
72.2 730603000780 1 O RING .O形密封圈1
730302900038 1 PLUG ASSY. 堵头总成2
73.1 1 PLUG .堵头2 B
73.2 730603000779 1 O RING .O形密封圈2
74 730302900158 1 END COVER BOLT 端盖螺钉4
75 730302900159 1 END COVER BOLT 端盖螺钉2
78 730302900161 1 END COVER BOLT 端盖螺钉4
83 730302900165 1 END COVER BOLT 端盖螺钉4
84 730302900166 1 SPOOL ASSY. 阀芯总成1
86 730302900167 1 END COVER 端盖1
730302900124 1 PLUG 堵头1
25 730603000289 1 O RING O形密封圈2
26 730302900125 1 SPRING 弹簧1
27 730302900126 1 SPOOL ASSY. 阀芯总成1
30 730603000804 1 O RING O形密封圈1
31 730654000306 1 RETAINING RING 挡圈2
34 730302900131 1 POPPET 托架1
35 730302900132 1 SPRING 弹簧1
36 730603000269 1 O RING O形密封圈1
38 730302900134 1 POPPET 托架1
39 730302900135 1 SPRING 弹簧1
41 730603000270 1 O RING O形密封圈3
52 730302900145 1 FLANGE 法兰1
53 730302900146 1 BUSH 衬套1
54 730603000272 1 O RING O形密封圈1
55 730654000307 1 RETAINING RING 挡圈1
67 730302900152 1 ANTI-DRIFT VALVE ASSY. 抗漂移阀1
1 RELIEF VALVE KIT ASSY. 溢流阀总成1 B
69.1 730302900154 1 RELIEF VALVE KIT .溢流阀1
69.2 730603000302 1 O RING .O形密封圈2
730302900155 1 RELIEF VALVE ASSY. 溢流阀总成1
70.1 1 RELIEF VALVE .溢流阀1 B
70.2 1 RETAINING RING .挡圈1 B
70.3 1 O RING .O形密封圈1 B
74 730302900158 1 END COVER BOLT 端盖螺钉4
75 730302900159 1 END COVER BOLT 端盖螺钉2
730302900171 1 PLUG ASSY. 堵头总成1
93.1 1 PLUG .堵头1
2 730302900109 1 SPOOL ASSY. 阀芯总成1
3 730302900110 1 SPOOL ASSY. 阀芯总成1
4 730302900111 1 SPOOL ASSY. 阀芯总成1
5 730302900112 1 SPOOL ASSY. 阀芯总成1
6 730302900113 1 SPOOL ASSY. 阀芯总成1
7 730603000803 1 O RING O形密封圈10
8 730302900114 1 SPOOL END COVER 阀芯端盖5
10 730302900115 1 PLATE ASSY 板总成1
41 730603000270 1 O RING O形密封圈7
74 730302900158 1 END COVER BOLT 端盖螺钉10
75 730302900159 1 END COVER BOLT 端盖螺钉2
90 730603000255 1 O RING O形密封圈1
91 730302900169 1 PLUG 堵头1
730302900177 1 PLUG ASSY. 堵头总成1
110.1 1 PLUG .堵头1 B
110.2 730603000779 1 O RING .O形密封圈1
5 730302900112 1 SPOOL ASSY. 阀芯总成1
7 730603000803 1 O RING O形密封圈10
8 730302900114 1 SPOOL END COVER 阀芯端盖5
11 730302900116 1 PLATE ASSY 板总成1
14 730302900264 1 SPOOL ASS’Y 阀芯总成1
15 730302900119 1 SPOOL ASSY. 阀芯总成1
16 730302900120 1 SPOOL ASSY. 阀芯总成1
17 730302900265 1 SPOOL ASS’Y 阀芯总成1
41 730603000270 1 O RING O形密封圈7
74 730302900158 1 END COVER BOLT 端盖螺钉10
75 730302900159 1 END COVER BOLT 端盖螺钉2
90 730603000255 1 O RING O形密封圈1
91 730302900169 1 PLUG 堵头
