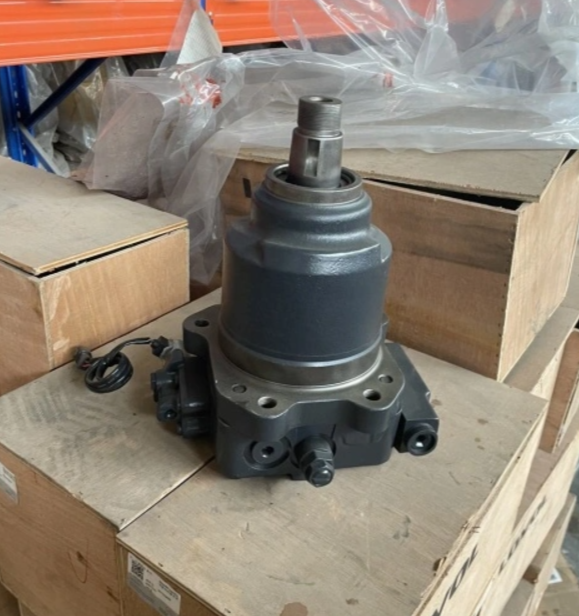

Поворотный механизм гидравлический узел мотор насос гидронасос башни кабины разворота swing gearbox для гусеничного экскаватора
706-7H-03010 SWING MACHINERY AND MOTOR, SWING MACHINERY (#80001-):
Pos. Part No Qty Parts name
1 207-26-71240 [1] Ring Komatsu
2 07040-11209 [1] Plug Komatsu
3 07002-11223 [1] O-ring Komatsu China
4 207-26-75130 [1] Case Komatsu China
5 07049-02430 [2] Plug Komatsu
6 207-26-73140 [1] Bearing Komatsu China
7 207-26-73150 [1] Bearing Komatsu China
8 207-26-62180 [1] Shaft Komatsu OEM
9 207-26-61210 [1] Seal Komatsu OEM
10 207-26-75140 [1] Cover Komatsu China
11 01010-81030 [12] Bolt Komatsu OEM
12 01643-31032 [12] Washer Komatsu
13 07000-15390 [1] O-ring Komatsu OEM
14 207-26-73130 [1] Carrier Komatsu China
15 207-26-73120 [4] Gear Komatsu China
16 20Y-27-41250 [4] Bearing Komatsu
17 20Y-27-41270 [8] Washer, Thrust Komatsu
18 20Y-26-21320 [4] Pin Komatsu China
19 20Y-26-21330 [4] Pin Komatsu China
20 207-26-54230 [1] Plate Komatsu China
21 205-32-51211 [1] Bolt Komatsu
22 207-26-71551 [1] Gear, Ring Komatsu
23 01010-81645 [18] Bolt Komatsu China
24 01643-31645 [18] Washer Komatsu
25 207-26-73110 [1] Gear Komatsu China
26 208-26-71241 [1] Plate Komatsu
27 208-26-71170 [1] Carrier Komatsu
28 207-26-71521 [3] Gear Komatsu China
29 22U-26-21320 [3] Bearing Komatsu
30 22U-26-21240 [6] Washer Komatsu
31 207-26-71210 [3] Pin Komatsu
32 04064-04018 [6] Ring, Snap Komatsu
33 208-26-71210 [1] Holder Komatsu
34 04260-01270 [1] Ball Komatsu OEM
35 207-26-71511 [1] Gear Komatsu China
36 207-26-71261 [1] Plate Komatsu OEM
37 144-60-11151 [1] Valve Komatsu
38 07270-21590 [1] Tube Komatsu China
39 07281-00197 [1] Clamp Komatsu
40 01010-81240 [10] Bolt Komatsu
41 01643-31232 [10] Washer Komatsu
42 207-26-71410 [1] Gauge Komatsu
43 20Y-26-21350 [1] Filler Komatsu
44 07000-15290 [1] O-ring Komatsu OEM
45 01010-82475 [12] Bolt Komatsu
46 01643-32460 [12] Washer Komatsu China
